Bike and frame parts

Wir bieten Ihnen hier besonders nützliches Zubehör sowohl für "normale" Fahrräder als auch für Liegeräder an, sowie Materialien und Teile, die wir selbst verwenden.

  3-Gang-Getriebenabe fürs TretlagerKurbelgarnituren

  Lenker und lange Vorbauten

  extra lange Tretkurbeln von 190 mm bis 210 mm

  Kurbelgarnituren

  Trike-Naben mit Trommelbremse, einseitig aufgehängt für die linke und rechte Seite, großer 90 mm Durchmesser

  Zubehör: Felgen, ohne Nippelbohrungen, Kantenband, Klettband

  Rahmenrohre: CrMo Rohre 60 mm Äd bis 20 mm, Tretlagerhülsen

E-novo3peed-01
blockHeaderEditIcon

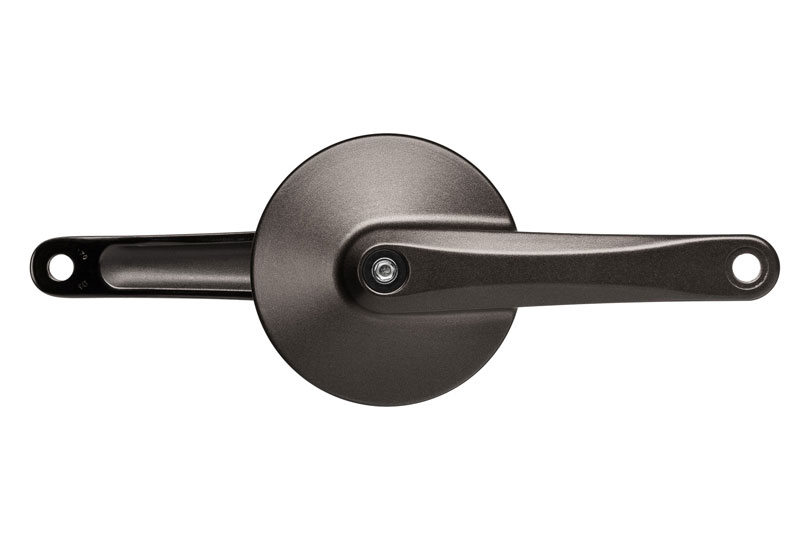

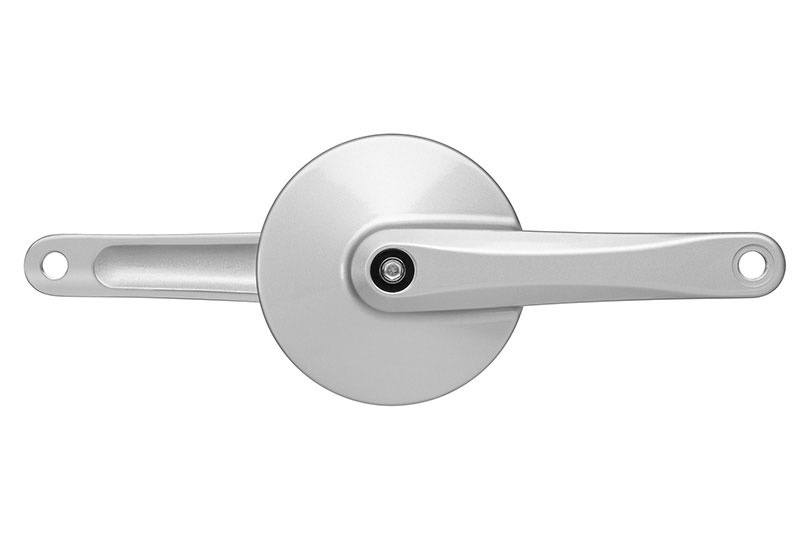

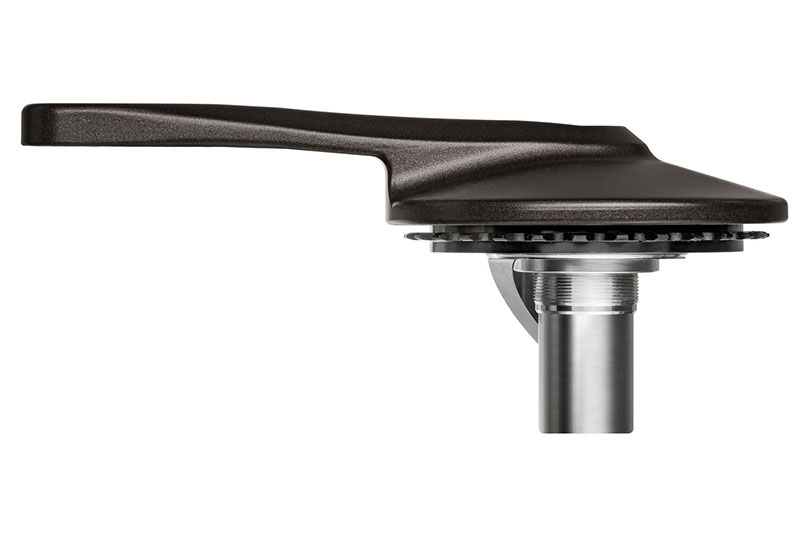

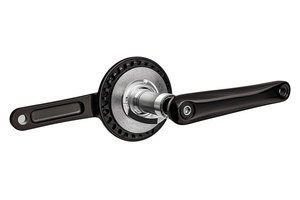

GTRO Gearbox

Are you like most people that really don’t like all the hassles and problems associated with a front derailleur? Now you have an alternative.

Efneo’s GTRO 3-speed front gearbox is perfect for trekking, hybrid, urban, single speed, city and folding bikes as well as for off road non-competition bikes and e-bikes.

Efneo's 3-speed front gearbox GTRO from efneo on Vimeo.

Product Gallery

Advantages for you

Easy to start from the first gear With Efneo you can reduce to the first gear in a standstill – like in a car – and start easily in 1st gear.

Immediate gear change Much quicker and easier than with a front derailleur. Change gear when pedalling and in a standstill.

No chain-skewing No chain-skewing and chain-dropping when paired with a rear derailleur.

Reduced maintenance No need for tiresome, tricky adjustments.

How it works?

Efneo Gearbox - How It Works? from efneo on Vimeo.

How to oput it on a bike - step by step

Efneo's GTRO Gearbox - How to install? from efneo on Vimeo.

E-novo3speed-Daten
blockHeaderEditIcon

Technische Daten

Gearbox type

It is a planetary gearbox.

Weight

It will add about 200 grams to the weight of your bike if you remove a three-chainring crankset of good quality (with aluminum cranks) and put the Efneo gearbox on your bike.

Gear ratio

Overall gear ratio is 179%.
2nd to 1st is -30%, 2nd to 3rd is+25%.
Efneo’s gearbox is equivalent to a front crankset with 28T/40T/50T chainring.

Frame compatibility

You can put Efneo gearbox on any frame designed for a tapered square axle bottom bracket.

Gear shifting

You can change gears when you are not pedaling.
You can change gears under load when upshifting a gear. You have to loosen your leg a bit when downshifting a gear (like in most bicycle gearboxes on the market).

Shifter and cable

We will be using a one-cable paddle shifter, like the one shown in this video. We plan to provide a grip-shifter, too.

Chainline

Gearbox installed on:
- 68mm long BB Shell: 43.0 mm
- 73mm long BB Shell: 45.5 mm

Q-factor

Gearbox installed on:
- 68mm long BB Shell: 177 mm
- 73mm long BB Shell: 182 mm

Crank length

170 mm
175 mm

Rear transmission compatibility

Can be paired with a rear derailleur, rear gearbox or single-speed hub. For a rear gearbox check the minimum front chainring suggested by the gearbox manufacturer (they often require minimum 34T, and the Efneo gearbox has 28T); this condition does not apply to bikes with much smaller wheels, then standard 26″-28″, for example folding bikes.

Chain / belt compatibility

We will offer a chainring for 1/8 and 3/32 inch chains. Soon we’ll offer a sprocket for a carbon belt (Gates Carbon Drive®).

Installing gearbox on your bike

Installation is presented shortly on this video.

The gearbox package includes:
- a rigth crank, with a gearbox inside,
- a left crank,
- a square tapered axle bottom bracket,
- a shifter, with a cable,
- a complete installation manual.

Maximum torque

We guarantee the Efneo gearbox works perfectly in all conditions except for extreme off-road applications like downhill or professional MTB.

Coating and colors

Crank will be painted. Black and silver versions will be available.
No embossed / engraved logo will be put on the crank, so you can also repaint the gearbox, if you wish.

E-parts02
blockHeaderEditIcon

Lasco Kurbelgarnitur

Lasco Kurbelgarnitur, 3 fach 42-32-22 Zähne, schwarz,
Kurbellänge 170 mm, Alu 6061.

Kettenblätter: verschraubt für 3/32" Ketten
Lochkreis O 104/64 mm, 4 Arm-Kurbel
Kettenlinie: 48/50 mm bei Tretlagerlänge 110/114 mm

Schöne, und sauber verarbeitete Kurbelgarnitur für 8/9-fach Kassetten, Gewicht: 760 g

Preis:  48,50 €

E-parts03
blockHeaderEditIcon

Sunrace Kurbelgarnitur

Sunrace M90 Kurbelgarnitur, 3 fach 42-32-22 Zähne, schwarz,
Kurbellänge 170 mm, Alu 6061.

Kettenblätter: verschraubt für 3/32" Ketten
Lochkreis O 104/64 mm, 4 Arm-Kurbel
Kettenlinie: 48/50 mm bei Tretlagerlänge 110/114 mm

Schöne, und sauber verarbeitete Kurbelgarnitur für 8/9-fach Kassetten, Gewicht: 825 g

Preis 43,50

E-parts04
blockHeaderEditIcon

Aluminium Cranks

Aluminium cranks in oversize length of 190 mm, 200 mm and 210mm available! 3 Colours!!

Preis, 190 mm Länge: 190,00 €

Preis, 200 mm Länge: 200,00 €

Preis, 210 mm Länge: 210,00 €

Gewicht für den Kurbelsatz komplett: 720 g

E-parts05
blockHeaderEditIcon

Trikenabe mit Trommelbremse

Einseitig aufgehängte Nabe mit Trommelbremse 90 mm Durchmesser,

Version für linke Seite und für rechte Seite.

Preis komplett mit Schnellspannachse: 87,30 €/St.





E-parts06
blockHeaderEditIcon

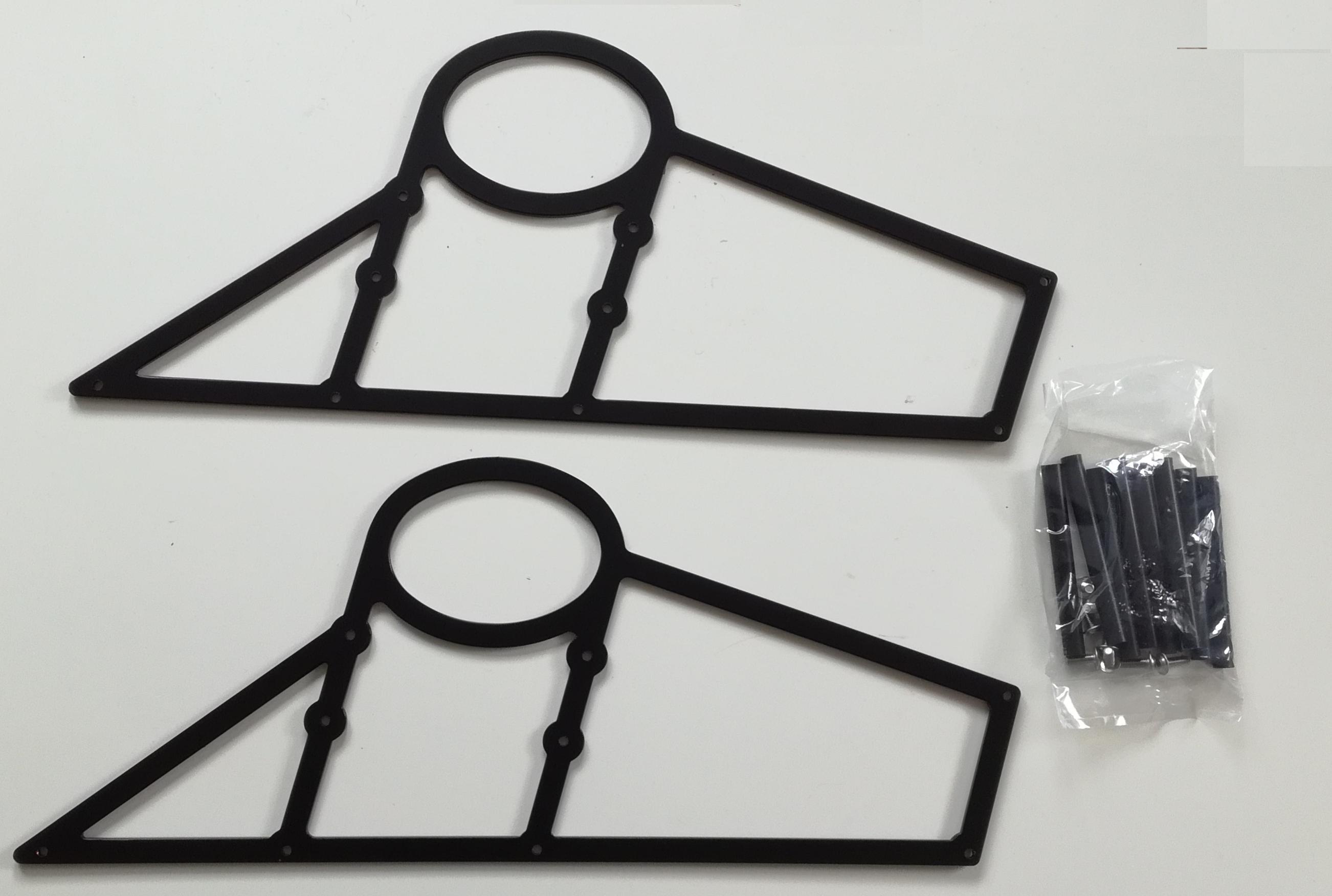

Fastening elements

Fastening elements for our and similar seats. In the picture the lower attachment with 3 longitudinal bores is shown for the seat, which allows for different seat heights. The matching mechanism enables continuous adjustment of the seat angle.
You can attach these mounts on your seat tube, order an inner width of 80, 70, 60 50 or 40 mm.

Material in natural aluminum, 4 mm, price for the set: 28,50 €

Material in black powder coated, 4 mm, price for the set: 38,50 €

E-parts07
blockHeaderEditIcon

CrMo-Pipes

We offer welded precision pipes in CrMo quality which we use for our bikes. We sell these with a handling surcharge up to 30 % on our buying prices. The shipping charges are a major hurdle: we can ship lengths up to 1.2 m quite cheaply with DHL. Up to 2 m we can send for reasonable charges.

We can offer presently:

Tagespreise:
60 mm outer diameter, mat. 25crMo4 wall thickness 1,0 mm Price: indicative 25,00 €/rm
50 mm     "         "     ,    "     crmo           "          1,2 mm Price:       "       22,50 €/rm
40 mm     "         "     ,    "   25Cr Mo4           "          1,0 mm Price:       "       25,00 €/rm
oval pipe ca. 40 x 20 mm, Cr Mo           "          1,0 mm Price:       "       25,00 €/rm
25,0 mm  "         "      ,   "    25CrMo 4 Wandst. 1,5 mm Price:       "       11,60 €/rm
20,0 mm  "         "      ,   "    25 crMo 4              Wandst. 1,0 mm                  Price        "         9,70 €/rm


Surcharge for cutting 2,0 €/cut. Shipping of lengths over 1.2 m can be very costly.

Tretlagergehäuse CrMo 39 x 68, BSA                                                                                       Preis  10,90

Tretlagergehäuse Alu 7005,  43 x 68, BSA                                                                                Preis  14,40

Tretlagergehäuse Alu 7005,  43 x 73, BSA                                                                                Preis  14,40

E-parts08
blockHeaderEditIcon

Other accessories and parts

(ohne Abb.)


Aluminium rims, no drills, silver anodized

Width outside: 23 mm/26"

€ 25,00 / each

Width outside: 23 mm/28"
€ 25,00 / each

E-parts09
